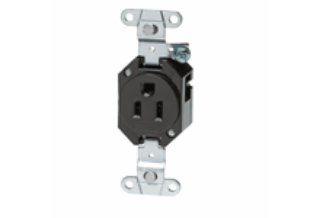

Actual Product May Vary From Image

5261DW WOO

Name: 5261DW WOO
Brand: Molex/Woodhead
SKU: 5261DW WOO
Availability: OutOfStock

Woodhead® 5261DW 130149 Single Heavy Duty Female Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Brown

Manufacturer: Molex/Woodhead

Manufacturer part number: 5261DW

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Woodhead®

Type

Single Heavy Duty

Description

Woodhead Super-Safeway products are heavy-duty industrial-wiring devices designed for abusive conditions and dependable performance for applications that demand the unmatched durability that rubber exclusively delivers. These rubberized industrial devices are the only wiring devices made of NEo-TEX® Paracril OZO rubber, a rubber construction that yields ultimate performance within a wide temperature range, around many oils and chemicals and abrasive conditions.

Woodhead® Female Receptacle, Single Heavy Duty, Series: 130149, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15 NEMA Rating, Industrial/Specification Grade, -40 to 75 deg C, Screw Terminal, Rubber, Brown

Application

Aircraft Construction/Airports, Construction Site, Facility Maintenance, Petrochemical, Pulp and Paper Manufacturing Applications

Standards

UL E46237 | CSA LR6837

Features

NEo-TEX® paracril OZO rubber body yields the best performance for abrasion, chemical exposure and temperature extremes within the Super-Safeway offering
Rugged nylon bodies within the Safeway® offering provide exceptional durability and performance
Color coded 1/4 in terminal screws pre-set in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips and square-drive screw drivers
Floating blade construction provides self-alignment, and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
Two-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
Nickel plated brass plug blades and connector contacts
NEo-TEX® paracril OZO rubber Super-Safeway outer housing
Nylon safeway outer housing
Stainless steel face screws
Nylon face insert
Brass wire saddle clamp
Zinc-plated steel cord clamp screws
Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%

Specifications

Amperage Rating:	15 A
Color:	Brown
Country of Origin:	MX
Grade:	Industrial/Specification
Material:	Rubber
NEMA Rating:	NEMA 5-15
Number of Poles:	2
Number of Wires:	3
Series:	130149
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	125 VAC
