5262-1PR LEV

Name: 5262-1PR LEV
Brand: Leviton Manufacturing
SKU: 5262-1PR LEV
Availability: OutOfStock

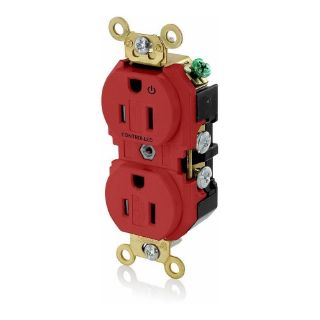

Leviton® 5262-1PR Duplex Extra Heavy Duty Self-Grounding Tamper Resistant Straight Blade Receptacle With 1 Plug Controlled Markings, 125 VAC, 15 A, 2 Poles, 3 Wires, Red

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5262-1PR

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Duplex Extra Heavy Duty Self-Grounding Tamper Resistant

Description

Leviton® Straight Blade Receptacle, Duplex Extra Heavy Duty Self-Grounding Tamper Resistant, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, Red, 4.06 in H x 1.53 in W x 1.27 in D Dimensions

Standards

ANSI C-73 | CSA C22.2 No. 42 | NOM-ANCE | FedSpec W-C 596 Certified | UL 498 Listed

Features

Hot terminal split

Specifications

Amperage Rating:	15 A
Color:	Red
Country of Origin:	MX
Dimensions:	4.06 in H x 1.53 in W x 1.27 in D
Enclosure:	NEMA WD-1/WD-6
Grade:	Industrial
Horsepower:	1/2 hp
Material:	Nylon
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
