5262-S1B LEV

Name: 5262-S1B LEV
Brand: Leviton Manufacturing
SKU: 5262-S1B LEV
Availability: OutOfStock

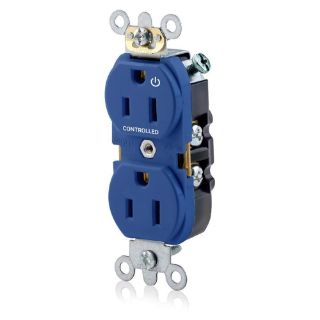

Leviton® 5262-S1B 5262-S1 Duplex Flat Smooth Face Heavy Duty Self-Grounding Standard Straight Blade Receptacle, 125 VAC, 15 A, 2 Poles, 3 Wires, Blue

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5262-S1B

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Duplex Flat Smooth Face Heavy Duty Self-Grounding Standard

Description

Leviton® offers custom imprinting solutions to meet the 2014 for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15 and 20 A, 125 VAC receptacles that are automatically controlled will be marked with a specific symbol.

Leviton® Straight Blade Receptacle, Duplex Flat Smooth Face Heavy Duty Self-Grounding Standard, Series: 5262-S1, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, Blue, 4.06 in H x 1.33 in W x 1.09 in D Dimensions

Application

Commercial and Residential Applications

Standards

ANSI (C-73) | CSA C22.2 No. 42 NOM-ANCE FedSpec W-C 596 | UL 498

Features

One Marked Controlled Receptacles

Specifications

Amperage Rating:	15 A
Color:	Blue
Country of Origin:	MX
Dimensions:	4.06 in H x 1.33 in W x 1.09 in D
Enclosure:	NEMA WD-1/WD-6
Grade:	Industrial
Horsepower:	1/2 hp
Material:	Nylon
NEMA Rating:	NEMA 5-15R
Number of Poles:	2
Number of Wires:	3
Series:	5262-S1
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
