5266-CA LEV

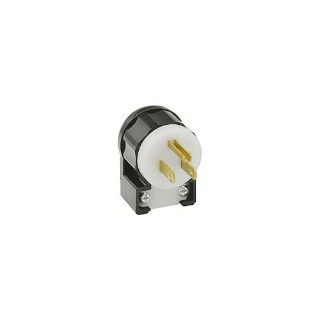

Leviton® Black & White® 5266-CA Angled Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black/White
Manufacturer: Leviton Manufacturing
Manufacturer part number: 5266-CA
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$31.36

Product Details

Brand Name

Leviton®

Type

Angled Cable Mount Grounding

Alternate Supplier #

Grainger - 25KT75

Description

Leviton® Black & White® line of industrial grade plugs and connectors offer superior performance, long lasting reliability and features that are backed by a lifetime warranty. Available in many NEMA and non-NEMA configurations, you'll be sure to find the right device for your needs.
Leviton® Black & White® Straight Blade Plug, Angled Cable Mount Grounding, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15P, Industrial Grade, 0.25 to 0.685 in Cord Dia, -40 to 60 deg C, Nylon, Black/White, 29 in H x 1.53 in W x 1.3 in D

Application

Industrial Applications

Standards

ANSI C-73 | NOM 057 | CSA C22.2 No. 42 File LR406 | UL 498 File No. E13399 | UL Federal Specification WC-596 | UL File No. E13393

Features

  • Rugged nylon construction resists impact, sunlight, chemicals and rough use
  • All contacts are solid 1-piece brass for better conductivity
  • Triple wipe, heavy duty power contacts set in deep pockets to resist damage
  • Captive, color coded brass #8 AWG terminal screws
  • Power Indication™ devices indicate when power is on and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
  • 18 to 10 AWG terminal accommodation
  • Zinc plated steel assembly screws and solid brass blade and contacts
  • Thermoplastic back cover, nylon wire module, cord clamp, clamp insert, brass terminal screws

Specifications

Amperage Rating:15 A
Color:Black/White
Cord Diameter:0.25 to 0.685 in
Country of Origin:US
Dimensions:29 in H x 1.53 in W x 1.3 in D
Grade:Industrial
Material:Nylon
NEMA Rating:NEMA 5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Voltage Rating:125 VAC
