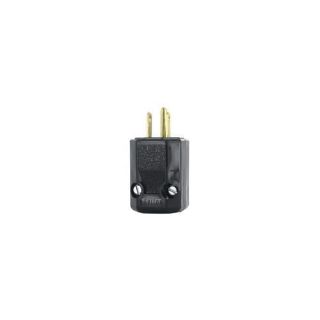

Actual Product May Vary From Image

5266-N LEV

Name: 5266-N LEV
Brand: Leviton Manufacturing
SKU: 5266-N LEV
Availability: OutOfStock

Leviton® Black & White® 5266-N Cable Mount Grounding Straight Blade Plug, 125 VAC, 15 A, 2 Poles, 3 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5266-N

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Cable Mount Grounding

Description

When it comes to the demanding nature of today's commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in today's faced paced world where lost minutes on a job can translate into lost profits.

Leviton® Black & White® Straight Blade Plug, Cable Mount Grounding, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA 5-15P, Industrial Grade, 0.25 to 0.685 in Cord Dia, -40 to 60 deg C, Nylon, Black, 1.53 in Dia x 1.98 in H

Application

Industrial Applications

Standards

ANSI C-73 | NOM 057 | CSA C22.2 No. 42, File No. LR406 | UL 498, File No. E13399, File No. E13393 | UL Federal Specification WC-596

Features

Rugged nylon construction resists impact, sunlight, chemicals and rough use
All contacts are solid 1-piece brass for better conductivity
Triple wipe, heavy duty power contacts set in deep pockets to resist damage
Captive, color coded brass #8 AWG terminal screws
Power Indication™ devices indicate when power is on and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
18 to 10 AWG terminal accommodation
Zinc plated steel assembly screws and solid brass blade and contacts
Thermoplastic back cover, nylon wire module, cord clamp, clamp insert, brass terminal screws

Specifications

Amperage Rating:	15 A
Color:	Black
Cord Diameter:	0.25 to 0.685 in
Country of Origin:	MX
Dimensions:	1.53 in Dia x 1.98 in H
Grade:	Industrial
Material:	Nylon
NEMA Rating:	NEMA 5-15P
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Voltage Rating:	125 VAC
