Home / 5269-C LEV

5269-C LEV

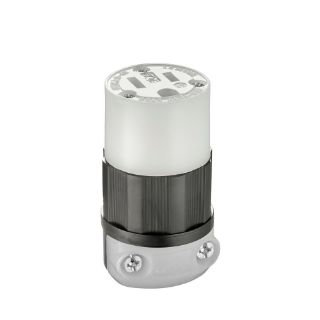

Picture of 5269-C LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5269-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$44.91 / EA

Description

Brand Name

Leviton®

Type

Cable Mount Grounding

Alternate Supplier #

Grainger - 5C370

Description

The Leviton® line of straight blade plugs and connectors includes black and White® industrial grade devices that resist impact, corrosion and chemicals and withstand punishing applications. Their innovative interlocking design, rugged nylon flanged inlets and outlets, integrated inlets and outlets with weather resistant covers and hospital grade devices that meet the highest standards for dependable, long term performance. Superior design, construction and ergonomic details provide long lasting performance and reliability in the demanding healthcare environment.
Leviton®, 5269-C, Straight Blade Connector, Cable Mount Grounding, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial Grade, 0.25 to 0.685 in Diameter Cord, -40 to 60 deg C, Screw Terminal, Nylon, Black/White, 1.49 in Dia x 2.76 in H Dimensions

Standards

ANSI C-73 | NOM 057 | NEMA WD-1/WD-6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13399 | Federal Specification WC596 | UL94 V-2 Flammability Rating

Features

  • Rugged nylon construction resists impact, sunlight, chemicals and rough use
  • All contacts are solid 1-piece brass for better conductivity
  • Triple wipe, heavy duty power contacts set in deep pockets to resist damage
  • Captive, color coded brass 8 AWG terminal screws
  • Unique cord clamp accepts wide range of cord sizes (0.245 to 0.7 in), providing secure grip without damaging cord jacket SVT 18/3 to so 14/3 AWG with strain relief insert, up to ST 10/3 AWG when strain relief insert is removed
  • Power indication devices indicate when power is ON and equipped with green neon bulb rated at 30000 hr (24/7) for 3.5 years
  • Zinc plated steel assembly screws and solid brass blade and contacts
  • Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
  • Super tough nylon body
  • 18 to 10 AWG terminal accommodation

Specifications

Amperage Rating:15 A
Color:Black/White
Cord Diameter:0.25 to 0.685 in
Country of Origin:MX
Dimensions:1.49 in Dia x 2.76 in H
Grade:Industrial
Material:Nylon
NEMA Rating:NEMA 5-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Screw
Voltage Rating:125 VAC
