5278-C LEV

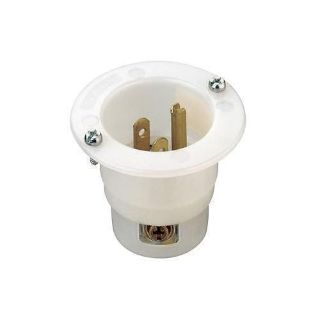

Picture of 5278-C LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5278-C
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$30.65 / EA

Description

Brand Name

Leviton®

Type

Grounding

Alternate Supplier #

Grainger - 25KT88

Description

Leviton® straight blade power inlets are suitable for industrial indoor and outdoor applications. Glass filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather resistant fit.
Leviton®, 5278-C, Inlet Receptacle, Grounding, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Back Wire Terminal, Nylon, White, 2.5 in Dia x 1.78 in H Dimensions

Application

Commercial Applications

Standards

ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13399 | Federal Specification WC596 File No. E13393 | UL94 V-2 Flammability Rating

Features

  • 18 to 10 AWG terminal accommodation
  • 2000 VAC minimum dielectric strength
  • Flange mounting
  • Nylon wire module
  • Solid brass blades
  • Brass terminal screws
  • Zinc plated steel assembly

Specifications

Amperage Rating:15 A
Color:White
Country of Origin:MX
Dimensions:2.5 in Dia x 1.78 in H
Grade:Commercial/Industrial
Horsepower:1/2 hp
Material:Nylon
NEMA Rating:NEMA 5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back Wire
Voltage Rating:125 VAC
