5278-FWP LEV

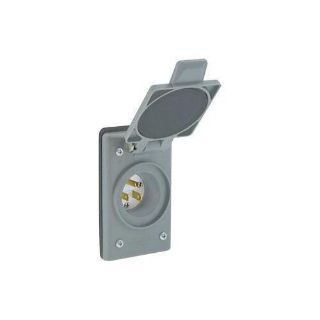

Picture of 5278-FWP LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5278-FWP
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$97.26 / EA

Description

Brand Name

Leviton®

Type

Grounding Locking

Alternate Supplier #

Grainger - 25KT90

Description

Leviton® straight blade power inlets are suitable for industrial indoor and outdoor applications. Glass filled thermoplastic cover and plate provides outstanding impact resistance and durability. Stainless steel external hardware resists corrosive effects of moisture as dual gaskets, one under plate and one under lid, provide for a superior weather resistant fit.
Leviton®, 5278-FWP, Inlet Receptacle, Grounding Locking, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-15P NEMA Rating, Industrial Grade, -40 to 60 deg C, Forged Wire Terminal, Nylon, Gray, 4.56 in H x 2.84 in W x 2.82 in D Dimensions

Standards

ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No. 42 File No. LR16347 | UL 498 File No. E13393 | UL94 V-2 per UL94 V-0/V-2 Flammability Rating

Features

  • Panel, FD box and FS box mounting
  • 2000 VAC minimum dielectric strength
  • Nylon strap
  • 18 to 10 AWG terminal accommodation, grounding
  • Panel, FD box, FS box mounting
  • Glass filled thermoplastic cover and plate
  • Brass line contacts

Specifications

Amperage Rating:15 A
Color:Gray
Country of Origin:MX
Dimensions:4.56 in H x 2.84 in W x 2.82 in D
Grade:Industrial
Horsepower:1/2 hp
Material:Nylon
NEMA Rating:NEMA 5-15P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Forged Wire
Voltage Rating:125 VAC
