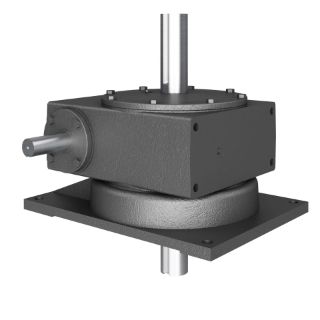

Actual Product May Vary From Image

529V 40/1 AL WR HUB

Name: 529V 40/1 AL WR HUB
SKU: 529V 40/1 AL WR HUB
Availability: OutOfStock

Hub City® 0220-65272 520 Right Angle Single Reduction Style AL Worm Gear Reducer, Shaft Input, Shaft Output, 8.26 hp Input, 40:1 Gear, 43.8 rpm Maximum Output, 9077 in-lb Output Torque Rating

Manufacturer part number: 0220-65272

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Hub City®

Type

Right Angle Single Reduction Style AL

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style AL, Series: 520, 40:1 Gear Ratio, 8.26 hp Input, Shaft Input, Shaft Output, 1.25 in Dia x 3.27 in L Input, 2 in Dia x 5.66 in L Output, 43.8 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 9077 in-lb Output, 5.16 in Centre Distance, 1/4 x 1/8 in Input, 1/2 x 1/4 in Output Keyway, 76.3 % Efficiency, Conventional Oil Lubrication, Cast Iron

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Features

Modular design
Universal mounting dimensions
Alloy shafting

Specifications

Centre Distance:	5.16 in
Efficiency:	76.3 %
Gear Ratio:	40:1
Horsepower:	8.26 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1.25 in Dia x 3.27 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 1/2 x 1/4 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	43.8 rpm
Output Size:	2 in Dia x 5.66 in L
Output Type:	Shaft
Series:	520
Torque Rating:	9077 in-lb Output
