5303-MBP-MNET PRS

Name: 5303-MBP-MNET PRS
Brand: Prosoft Technology
SKU: 5303-MBP-MNET PRS
Availability: OutOfStock

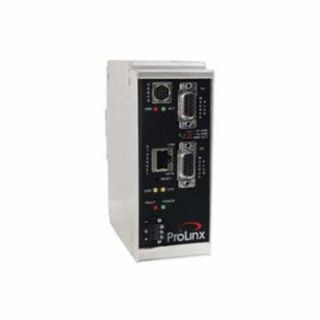

ProSoft Technology 5303-MBP-MNET IP Gateway, MNET Protocol, 500 mA at 32 VDC Power Output

Manufacturer: Prosoft Technology

Manufacturer part number: 5303-MBP-MNET

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

ProSoft Technology

Description

The ProLinx modbus plus to modbus TCP/IP gateway creates a powerful connection between devices on a modbus TCP/IP network and a modbus plus device. This stand-alone DIN rail mounted protocol gateway provides one modbus plus configurable DB9F port and one EtherNet port. The modbus plus protocol driver supports both master and slave implementations of the protocol on the DB9 female modbus plus port. The modbus plus port is fully configurable. The modbus TCP/IP protocol driver can interface many different protocols into Schneider electric Quantum processors as well other solutions supporting the protocol. The MNET driver supports client and server connections and when coupled with the web option provides a web/ftp interface as well.

ProSoft Technology IP Gateway, MNET Protocol, 500 mA at 32 VDC Power Output, 5.2 in H x 2.07 in W x 4.52 in D, Environmental Conditions: 5 to 95% Non-Condensing Relative Humidity

Application

For the many applications where ethernet/ip connectivity can be used to integrate a modbus plus device into a system, the module are found in most industries, especially the manufacturing, oil and gas, electrical power and food processing

Standards

Features

The EtherNet/IP gateway is a powerful module designed with both client and server support, enabling easy connection to Rockwell Automation PLCs (CLX, SLC, PLC, CPLX, and similar devices)
In combination with the modbus device support, the module provides a very powerful interface to the many modbus devices which are in use in the industrial marketplace today
The ProLinx module contains an internal database that consists of areas for application data, status information, and configuration information internal database
The internal database is shared between all ports on the module and is used as a conduit to pass information from a device on one network to one or more devices on another network
The data area is used to store and retrieve data by the protocol drivers and for data exchange between protocols, the database is used as a source for write commands to remote devices and holds data collected from the remote devices
Commands defined in the configuration file (stored in the configuration data area) control how the data is to be handled in the database
Status data area is used to store error codes, counters, and port status information for each port
Configuration data area contains module configuration information such as port configuration, network information, and command configuration, this configuration file is downloaded to, or uploaded from, this area
24 VDC nominal, 18 to 32 VDC allowed, positive, negative, GND terminals, 2.5 mm screwdriver blade power supply
Power and module status, application status, serial port activity, serial port error status LED indicators
DB-9M RS-232 only no hardware handshaking configuration serial port
10 base-T half duplex RJ45 connector, link and activity LED indicators, 1500 Vrms at 50 Hz to 60 Hz for 60 s electrical isolation, EtherNet broadcast storm resiliency equals less than or equal to 5000 frames/sec and less than or equal to 5 minutes duration
Modbus plus connector two DB9 female standard modbus plus connectors are application ports
2500 Vrms port signal isolation per UL 1577, 3000 VDC minimum port to ground and port to logic power isolation serial port isolation
Modbus plus to modbus TCP/IP gateway
5.20 in H x 2.73 in W x 4.52 in D extended

Includes

Mini-DIN to DB-9M Serial Cables, 4 ft RS-232 Configuration Cable, 2.5 mm Screwdriver, CD (Docs , Configuration Utility), RS-422/485 DB-9 To Screw Terminal Adaptor (1 or 4, Depending On Ports)

Specifications

Dimensions:	5.2 in H x 2.07 in W x 4.52 in D
Environmental Conditions:	5 to 95% Non-Condensing Relative Humidity
Power Output:	500 mA at 32 VDC
Protocol:	MNET
