5305A 2RSNR/C3 BLT

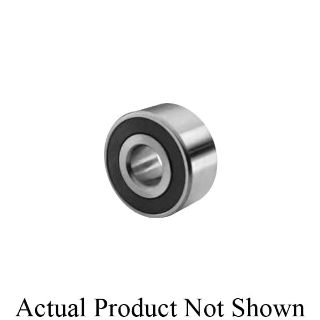

Picture of 5305A 2RSNR/C3 BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
5305A 2RSNR/C3
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

TRITAN®

Description

TRITAN® Angular Contact Ball Bearing, Series: 5300, 25 mm Bore, 62 mm OD, 2 Rows, 25.4 mm Width, Double Seal Closure, 6800 lb Load, Steel Bearing, Rubber Seal, Polyamide 66 Cage, 6700 rpm Grease/8900 rpm Oil Maximum, -20 to 248 deg F

Standards

AISI/SAE 52100

Features

6800 lb dynamic/4600 lb static load

Specifications

Bearing Material:Steel
Bore Diameter:25 mm
Cage Material:Polyamide 66
Closure Type:Double Seal
Load Capacity:6800 lb
Maximum Speed:6700 rpm Grease/8900 rpm Oil
Number of Rows:2
Outside Diameter:62 mm
Seal Material:Rubber
Series:5300
Temperature Rating:-20 to 248 deg F
Width:25.4 mm
