Actual Product May Vary From Image

5307-MBP-HART PRS

Name: 5307-MBP-HART PRS
Brand: Prosoft Technology
SKU: 5307-MBP-HART PRS
Availability: OutOfStock

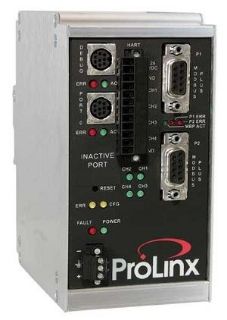

Modbus Plus to HART Multi-drop - 4 Channel

Manufacturer: Prosoft Technology

Manufacturer part number: 5307-MBP-HART

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

PROSOFT

Type

Stand-alone Gateway

Description

Modbus Plus to HART Multi-drop Gateway creates a powerful connection between devices on a Modbus Plus network and HART devices. This stand-alone DIN-rail mounted protocol gateway provides one Modbus Plus configurable DB9F port and four HART Multi-drop cha

Application

Manufacturing, Oil and Gas, Electrical Power and Food Processing.

Standards

ATEX, CE/EMC, Environmental, UL,GOST-R

Features

Ideal solution for applications where Modbus Plus connectivity can be used to integrate HART Multi-drop devices into a system; Powerful module designed with both Master and Slave support, enabling easy connection to other Modbus devices (Modicon processors and many others).

Specifications

Configuration:	Yes
Connectivity:	Serial
Country of Origin:	USA
Enclosure:	Aluminum
Environmental Conditions:	-20 to 50DEG C Operating, -40 to 85DEG C Storage, 5 to 95 Percent Humidity
Ethernet:	10Base-T
Frequency Rating:	50 to 60 HZ
Height:	5.2 IN
Interface:	RS-232, RS-422, RS-485
Length:	4.52 IN
Port:	1
Protocol:	MCM, HART
Software Requirements:	Drivers
Sub Brand:	5000
Width:	2.07 IN

Resources

Spec Sheet Warranty
