5307 ZZ/C3 PRX BLT

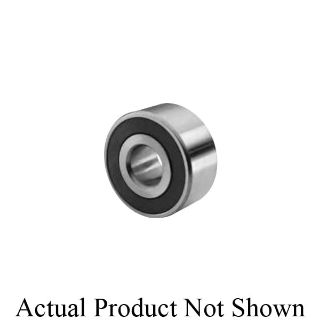

Picture of 5307 ZZ/C3 PRX BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
5307 ZZ/C3 PRX
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$45.10 / EA

Description

Brand Name

TRITAN®

Description

TRITAN® Angular Contact Ball Bearing, Series: 5300, 35 mm Bore, 80 mm OD, 2 Rows, 34.9 mm Width, Double Shield Closure, 11100 lb Load, Steel Bearing, Polyamide 66 Cage, 5000 rpm Grease/6600 rpm Oil Maximum, -20 to 248 deg F

Standards

AISI/SAE 52100

Features

11100 lb dynamic/7850 lb static load

Specifications

Bearing Material:Steel
Bore Diameter:35 mm
Cage Material:Polyamide 66
Closure Type:Double Shield
Load Capacity:11100 lb
Maximum Speed:5000 rpm Grease/6600 rpm Oil
Number of Rows:2
Outside Diameter:80 mm
Series:5300
Temperature Rating:-20 to 248 deg F
Width:34.9 mm
