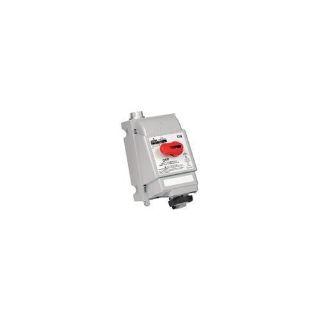

Actual Product May Vary From Image

530MI5W LEV

Name: 530MI5W LEV
Brand: Leviton Manufacturing
SKU: 530MI5W LEV
Availability: OutOfStock

Leviton® Powerswitch® 530MI5W Series II Non-Fused North American Configuration Watertight Pin and Sleeve Mechanical Interlock Receptacle, 347/600 VAC, 30 A, 4 Poles, 5 Wires

Manufacturer: Leviton Manufacturing

Manufacturer part number: 530MI5W

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Non-Fused North American Configuration Watertight

Description

Leviton® Powerswitch® Pin and Sleeve Mechanical Interlock Receptacle, Non-Fused North American Configuration Watertight, Series: Series II, 347/600 VAC, 30 A, 25 hp, 4 Poles, 5 Wires, NEMA 3R/4X/12K/IP67/IP69K Enclosure, Valox® 357, Black, 12.52 in H x 8.78 in W x 8.29 in D

Application

Industrial Applications

Standards

CE 73/23/93/68/EEC | CSA C22.2 No. 182.1/14 | IEC 60309-1/60309-2/60309-4 | UL 508/231/1686/1682

Features

Engineered to IP67 watertight and IP69K high-pressure, high-temperature washdown standards
Fused models accept Class J time-delay fuses
Exposed plastic materials are UV-stabilized

Specifications

Amperage Rating:	30 A
Color:	Black
Country of Origin:	CZ
Dimensions:	12.52 in H x 8.78 in W x 8.29 in D
Enclosure:	NEMA 3R/4X/12K/IP67/IP69K
Material:	Valox® 357
Number of Poles:	4
Number of Wires:	5
Power Rating:	25 hp
Series:	Series II
Voltage Rating:	347/600 VAC
