Name: 530R7W LEV
Brand: Leviton Manufacturing
SKU: 530R7W LEV
Availability: OutOfStock

530R7W LEV

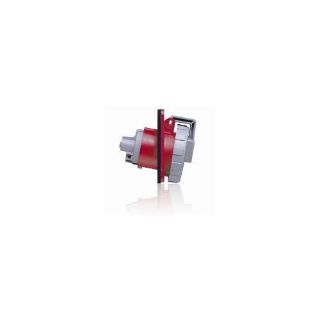

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

530R7W

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Watertight

Description

Leviton®, 530R7W, Sleeve And Pin Receptacle, Watertight, 277/480 VAC, 30 A, 50/60 Hz Frequency, 4 Pole, 5 Wires, Industrial Grade, IP67 Enclosure, -40 to 60 deg C, Screw Terminal, Valox® 357, Red, 4.37 in H x 4.64 in D Dimensions

Standards

UL 1682/1686 | CSA C22.2 No. 182.1 per Low Voltage Directives 73/23/EEC/93/68/EEC | IEC 60309-1/60309-2 | UL94 V-2 Flammability Rating

Features

Certified for current interrupting at full rated current
Ferrous parts immersed in 20 deg C, 10% ammonium chloride solution for 10 min

Specifications

Amperage Rating:	30 A
Color:	Red
Country of Origin:	CZ
Dimensions:	4.37 in H x 4.64 in D
Enclosure:	IP67
Frequency Rating:	50/60 Hz
Grade:	Industrial
Material:	Valox® 357
Number of Poles:	4
Number of Wires:	5
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Screw
Voltage Rating:	277/480 VAC

Resources

Video
