5335-I LEV

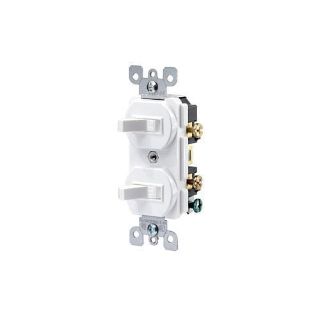

Leviton® Decora® Cheetah™ 5335-I Combination Duplex Style Grounding AC Switch, 20 A, 120/277 VAC, 125 VAC, 1 Poles, 3 Wires, 14 to 12 AWG Wire
Manufacturer: Leviton Manufacturing
Manufacturer part number: 5335-I
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$40.68

Product Details

Brand Name

Leviton®

Type

Combination Duplex Grounding

Alternate Supplier #

Grainger - 25KU64

Description

With Leviton® extensive assortment of combination devices, you can fill a one-gang space with two switches, a switch and receptacle, even a switch and GFCI. From sensor guide lights to multi-purpose styles and tamper resistant receptacles, we accommodate your every need. These devices come in a range of colors and are backed by a limited two-year warranty. Built to last and designed to save space, these attractively styled devices are at home in any setting.
Leviton® Decora® Cheetah™ AC Switch, Combination Duplex Style Grounding, 20 A, 120/277 VAC, 125 VAC Electrical Rating, 1 Pole, 3 Wires, 14 to 12 AWG Wire, NEMA 5-20R Enclosure, Wall/Surface Mounting, Commercial Grade, Side Wire Terminal, Thermoplastic, Ivory, 4.2 in H x 1.62 in W x 16 in D

Application

Commercial Applications

Standards

ANSI C-73 | CSA C222.2 No. 111/152105 File No. LR3413 | NOM 057 | UL 20 File No. E7458 | UL94 V-2 Flammability Rating | NEMA WD1/WD6

Features

  • AC quiet switches have silver cadmium oxide contacts and receptacles have double wire contacts for maximum conductivity
  • Terminal screw accept up to #12 AWG copper or copper clad wire
  • Fits standard wallboxes
  • Break-off tabs on devices with switches permit conversion to separate feeds
  • 120 VAC (switch), 125 VAC (receptacle)
  • -40 to 120 deg C operating temperature
  • Toggle actuator

Specifications

Color:Ivory
Country of Origin:MX
Dimensions:4.2 in H x 1.62 in W x 16 in D
Electrical Ratings:20 A, 120/277 VAC, 125 VAC
Enclosure:NEMA 5-20R
Grade:Commercial
Material:Thermoplastic
Mounting:Surface
Number of Poles:1
Number of Wires:3
Terminal Type:Side Wire
Wire Size:14 to 12 AWG
