5349-FBA LEV

Name: 5349-FBA LEV
Brand: Leviton Manufacturing
SKU: 5349-FBA LEV
Availability: OutOfStock

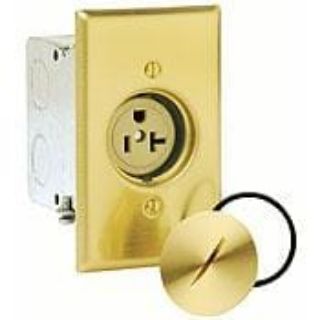

Leviton® 5349-FBA 1-Gang Single Self-Grounding Tamper-Resistant Floor Box Receptacle Assembly, 125 VAC, 20 A, 2 Poles, 3 Wires, Ivory

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5349-FBA

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

1-Gang Single Self-Grounding Tamper-Resistant

Description

For low profile, in-floor receptacle installations, our floor box assemblies are the perfect fit. Available in both 15 & 20 A configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.

Leviton® Floor Box Receptacle Assembly, 1-Gang Single Self-Grounding Tamper-Resistant, 125 VAC, 20 A, 1/2 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Nylon/Thermoplastic, Ivory, 4.5 in H x 2.75 in W x 3.7 in D Dimensions

Application

Residential, Home Office Workstations, Great Rooms, Conference Rooms and Commercial, Stages

Standards

Features

Brass plate and screw cap resist abuse and prevent foreign contaminants from entering device
Plate gasket and rubber O-ring combine to seal out moisture and air-borne particles
Single-receptacle is ideal for applications that require a dedicated circuit
The flange height of 0.27 in meets Americans with Disabilities Act standards for accessible design section 4.3.8
Thermoplastic nylon face material
Brass #10-32 terminal screws
Brass #8-32 grounding screw
Zinc plated steel strap and clamp nuts
Brass plated ground clips
Solid brass floor plate
Brass triple-wipe 0.031 THK line contacts
Withstands 2000 VAC per UL498 dielectric voltage
Maximum 30 deg C after 50 cycles OL at 150% rated current temperature rise
V-2 per UL94 flammability rated
Brass-hot, green-ground, silver-neutral terminal
Full-rated current limiting
14 to 10 AWG terminal accommodation

Includes

Cover Plate with Screw Caps, Heavy Duty Specification Grade Receptacle, 3-1/2 in Deep Electrical Box, Associated Mounting Hardware and Gaskets

Specifications

Amperage Rating:	20 A
Color:	Ivory
Country of Origin:	MX
Dimensions:	4.5 in H x 2.75 in W x 3.7 in D
Grade:	Commercial
Horsepower:	1/2 hp
Material:	Nylon/Thermoplastic
NEMA Rating:	NEMA 5-20R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Side Wire
Voltage Rating:	125 VAC
