5352 LEV

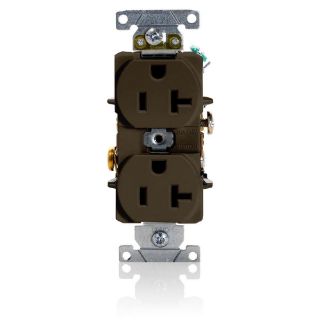

Picture of 5352 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5352
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$8.96 / EA

Description

Brand Name

Leviton®

Type

Heavy Duty

Alternate Supplier #

Grainger - 25MF08

Description

Leviton® line of Extra Heavy-Duty Industrial Grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial Grade devices are the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.
Leviton®, 5352, Straight Blade Duplex Receptacle, Heavy Duty, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, Brown, 4.06 in H x 1.55 in W x 1.12 in D Dimensions

Application

Commercial Applications

Standards

ANSI (C-73) | CSA C22.2 No. 42 File No. 152105 | NOM Certified | UL Federal Specification WC-596 File No. E13399 | UL 498 File No. E13399 | UL94 Flammability Rating

Features

  • Impact resistant thermoplastic nylon cover and body
  • Smooth face does not collect dirt
  • Four corner latches securely fasten face
  • Large, triple-wipe, brass T contacts for superior contact and conductivity
  • Back and side wiring options
  • Brass terminal screws to reduce conductor oxidation
  • Break-off tabs for easy two-circuit conversion
  • Apron barrier to prevent accidental contact between terminal screw heads and metal box
  • Exclusive V-shaped, serrated back-wiring clamps for superior contact and conductivity
  • Wire lead receptacles for fast and easy installation
  • Wallbox mounting
  • Self-grounding
  • 1-phase
  • 2000 VAC minimum dielectric strength
  • Steel strap
  • 14 to 10 AWG wire terminal

Specifications

Amperage Rating:20 A
Color:Brown
Country of Origin:MX
Dimensions:4.06 in H x 1.55 in W x 1.12 in D
Enclosure:NEMA WD-1/WD-6
Grade:Industrial
Horsepower:1 hp
Material:Thermoplastic
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
