5352AI HWD

Name: 5352AI HWD
Brand: Hubbell Wiring Device-Kellems
SKU: 5352AI HWD
Price: 2.90 USD
Availability: OutOfStock

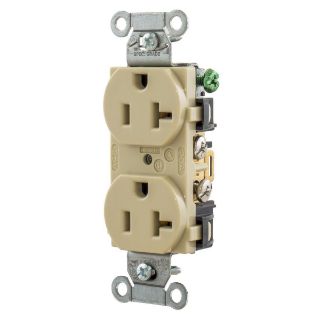

Actual Product May Vary From Image

Product Details

Manufacturer:

Hubbell Wiring Device-Kellems

Manufacturer part number:

5352AI

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

$2.90 / EA

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount

Alternate Supplier #

Grainger - 1XC14

Description

Wiring Device-Kellems Hubbell-PRO Duplex Receptacle, Heavy Duty, Series: Industrial, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Specification Grade, -40 to 75 deg C, Back/Side Wire Terminal, Nylon, Ivory, 3.28 in H x 1.41 in W Dimensions

Application

Indoor Dry Environment

Standards

Features

Smooth nylon face
RTP base, brass 0.31 in triple wipe power contacts, 0.31 in ground contact, #8 to 32 AWG line terminal and ground screws, galvanized steel 0.04 in mounting strap and center assembly staple, stainless steel automatic self-grounding staple, zinc plated steel mounting screws
Withstands 2000 V minimum dielectric strength
14 to 10 AWG copper stranded or solid conductor only
UL 94V-2 for Top and UL 94V-0 for base flammability
2 pole, 3 wire grounding
Max 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
Certified for current interrupting at full rated current
Ratings are a permanent part of the device

Specifications

Amperage Rating:	20 A
Color:	Ivory
Country of Origin:	CN
Dimensions:	3.28 in H x 1.41 in W
Grade:	Commercial/Industrial/Specification
Horsepower:	1 hp
Material:	Nylon
NEMA Rating:	5-20R
Number of Poles:	2
Number of Wires:	3
Series:	Industrial
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Back/Side Wire
Voltage Rating:	125 VAC
