5362AL HWD

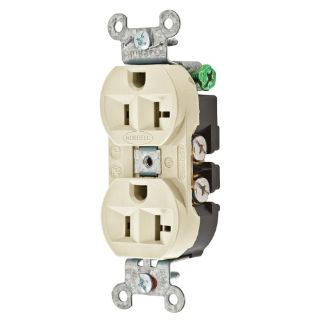

Picture of 5362AL HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
5362AL
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Heavy Duty Standard

Description

Wiring Device-Kellems Hubbell-PRO Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Almond, 3.281 in H x 1.406 in W x 1.094 in D Dimensions

Application

Indoor Dry Environment, Commercial and Industrial Applications

Standards

RoHS Compliant | CSA C22.2 No. 42 | UL 498 File No. E2186 | Federal Specification WC596 | UL 94-V-2 Flammability Rating | NEMA WD1/WD5/WD6

Features

  • Slender compact design
  • Triple wipe contacts
  • Finder groove face

Specifications

Amperage Rating:20 A
Color:Almond
Country of Origin:US
Dimensions:1.41 in W x 1.09 in D x 3.28 in H
Enclosure:NEMA 5-20R
Grade:Commercial/Industrial
Horsepower:1 hp
Material:Composite/Thermoplastic
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 75 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
