5362G HWD

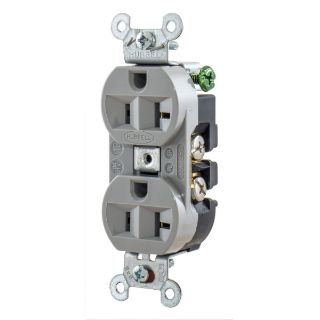

Wiring Device-Kellems Hubbell-Pro™ 5362G 1-Phase Duplex Grounding Heavy Duty Standard Straight Blade Receptacle, 125 VAC, 20 A, 2 Poles, 3 Wires, Gray
Manufacturer part number: 5362G
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$5.53

Product Details

Brand Name

Wiring Device-Kellems

Type

1-Phase Duplex Grounding Heavy Duty Standard

Alternate Supplier #

Grainger - 2WMR7

Description

Wiring Device-Kellems Hubbell-Pro™ Straight Blade Receptacle, 1-Phase Duplex Grounding Heavy Duty Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial Grade, -40 to 60 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Gray, 3.28 in H x 1.41 in W Dimensions

Application

Indoor Applications

Standards

RoHS Compliant | CSA File No. 285 | NEMA WD1/WD5/WD6 | UL 498 File No. E2186

Features

  • RTP base, brass 0.31 in triple wipe contacts, 0.31 in ground contact, 32 to 8 AWG line terminal and ground screw, galvanized steel 0.04 in mounting strap and center assembly staple, stainless steel automatic self-grounding staple, zinc plated steel mounting screw
  • Withstands 2000 VAC minimum dielectric voltage
  • Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% rated current for either AC or DC applications per UL 498 temperature rise
  • Certified for current interrupting at full rated current
  • Ratings are a permanent part of the device product identification
  • 14 to 12 AWG wire size

Specifications

Amperage Rating:20 A
Color:Gray
Country of Origin:US
Dimensions:1.41 in W x 1.09 in D x 3.28 in H
Grade:Commercial/Industrial
Horsepower:1 hp
Material:Composite/Thermoplastic
NEMA Rating:5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Back/Side Wire
Voltage Rating:125 VAC
