Actual Product May Vary From Image

5374 LEV

Name: 5374 LEV
Brand: Leviton Manufacturing
SKU: 5374 LEV
Availability: OutOfStock

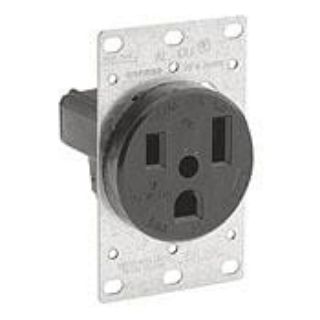

Leviton® 5374 Extra Heavy Duty Grounding Straight Blade Receptacle, 250 VAC, 50 A, 2 Poles, 3 Wires, Black

Manufacturer: Leviton Manufacturing

Manufacturer part number: 5374

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Leviton®

Type

Extra Heavy Duty Grounding

Description

Leviton® line of extra heavy-duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, hospital grade, etc., these Industrial grade devices are the electrical contractor choice for use in factories, schools, hospitals and commercial office buildings.

Leviton® Straight Blade Receptacle, Extra Heavy Duty Grounding, 250 VAC, 50 A, 3 hp, 2 Pole, 3 Wires, NEMA 6-50R NEMA Rating, Industrial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Black, 3.7 in H x 2.25 in W x 2.22 in D Dimensions

Application

Commercial Applications

Standards

Features

Heavy gauge, double wipe copper alloy contacts
Easy-to-wire terminals accept up to no 4 AWG conductors
Terminals marked for easy identification and fast wiring
All mounting hardware included
Flush mount devices fit single or two-gang outlet boxes
Surface mount devices are commercial grade and have concentric knockouts for 3/4 in and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable

Specifications

Amperage Rating:	50 A
Color:	Black
Country of Origin:	MX
Dimensions:	3.7 in H x 2.25 in W x 2.22 in D
Enclosure:	NEMA WD-1/WD-6
Grade:	Industrial
Horsepower:	3 hp
Material:	Thermoplastic
NEMA Rating:	NEMA 6-50R
Number of Poles:	2
Number of Wires:	3
Temperature Rating:	-40 to 60 deg C
Terminal Type:	Side Wire
Voltage Rating:	250 VAC
