5376 LEV

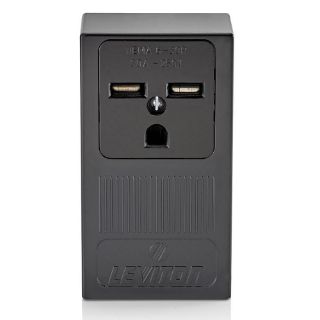

Picture of 5376 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5376
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Extra Heavy Duty Grounding

Alternate Supplier #

Grainger - 25MF09

Description

Leviton® line of extra heavy duty industrial grade receptacles are designed and manufactured to withstand the harsh conditions typically associated with industrial environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, hospital grade and more, these industrial grade devices are the electrical contractors choice for use in factories, schools, hospitals and commercial office buildings.
Leviton®, 5376, Straight Blade Receptacle, Extra Heavy Duty Grounding, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA 6-30R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Black, 4.82 in H x 2.68 in W x 24 in D Dimensions

Standards

NEMA WD1/WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 File No. 152105 | UL 498 File No. E13399/E13393 | UL94 V-2 Flammability Rating

Features

  • Heavy gauge, double wipe copper alloy contacts
  • Easy-to-wire terminals accept up to no 4 AWG conductors
  • Terminals marked for easy identification and fast wiring
  • All mounting hardware included
  • Flush mount devices fit single or 2-gang outlet boxes
  • Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable
  • Surface mounting
  • Grounding
  • 2000 VAC minimum dielectric strength
  • Galvanized steel strap
  • 14 to 6 AWG wire terminal

Specifications

Amperage Rating:30 A
Color:Black
Country of Origin:MX
Dimensions:4.82 in H x 2.68 in W x 24 in D
Grade:Commercial
Horsepower:2 hp
Material:Thermoplastic
NEMA Rating:NEMA 6-30R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:250 VAC
