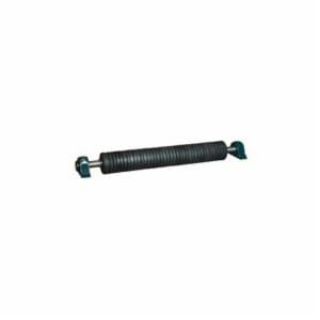

Actual Product May Vary From Image

54-FE7022-01 REX

Name: 54-FE7022-01 REX
Brand: Rexnord
SKU: 54-FE7022-01 REX
Availability: OutOfStock

Rex® 54-FE7022-01 F Series Heavy Duty Flat Live Impact Idler With MA2207 Pillow Blocks, E CEMA Rating, 7 in Dia Roll, 54 in W Belt, Rubber

Manufacturer: Rexnord

Manufacturer part number: 54-FE7022-01

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Rex®

Type

Heavy Duty

Description

Rex® belt conveyor idlers and components have an extensive history of durability and high performance in the most abrasive material handling applications. From impact to return idlers and everything in between, Rexnord® has you covered no matter where or what your belt conveyor is moving.

Rex® Flat Live Impact Idler, Heavy Duty, Series: F Series, E CEMA, 7 in Roll Dia, 54 in Belt Width, Ball Bearing, 58 in Roller Length, 65.63 in Overall Width, 63 in Distance Between Mounting Holes, Rubber

Application

Asphalt, Cement and Aggregate, Fertilizer, Forestry, Mining and Solid Waste

Standards

ANSI B20.1 | OSHA Approved

Features

Longer idler life
Withstands rough handling
Interchangeability built to fit existing conveyor frame without cutting or fitting
Self cleaning base
Durable, high-quality seal provides maintenance-free life
Rugged ball bearings provide ample load carrying capacity
Wide center brackets for heavier loads
Handles surge loading
0 deg trough angle
Regreasable lubrication

Specifications

Bearing Type:	Ball
Belt Width:	54 in
CEMA Rating:	E
Distance Between Mounting Holes:	63 in
Material:	Rubber
Overall Width:	65.63 in
Roll Diameter:	7 in
Roller Length:	58 in
Series:	F Series
