5456-VY LEV

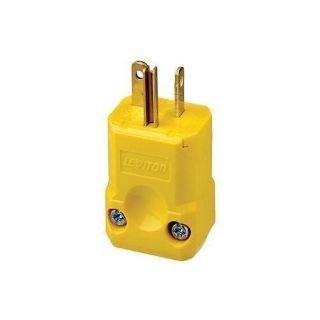

Picture of 5456-VY LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5456-VY
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$28.32 / EA

Description

Brand Name

Leviton®

Type

Cable Mount Grounding

Alternate Supplier #

Grainger - 25KV83

Description

When it comes to the demanding nature of todays commercial and industrial electrical environments, ruggedness and ease of installation are the features you look for first in any line of plugs and connectors. Leviton® Python® straight blade plugs and connectors hold up under the most exacting requirements, the toughest conditions, the roughest handling. Python® exceptional design features meet your needs for a quick, easy-to-wire plug and connector system, a must in todays faced paced world where lost minutes on a job can translate into lost profits.
Leviton® 5456-VY Straight Blade Plug, Cable Mount Grounding, 250 VAC, 20 A, 2 Pole, 3 Wires, NEMA 6-20P NEMA Rating, Industrial Grade, 0.25 to 0.655 in Diameter Cord, -40 to 60 deg C, Nylon, Yellow, 1.81 in H x 1.41 in W x 1.22 in D Dimensions

Application

Industrial Applications

Standards

ANSI C73 | NOM 057 | NEMA WD1/WD6 | CSA C22.2 No. 42 File No. LR406 | UL 498 File No. E13399 | UL94 V-2 Flammability Rating

Features

  • Hinged design for fast, easy, installation and assembly
  • Super tough high impact nylon body
  • Triple drive screws for easy wiring standard, Philips® and Robertson
  • Clear thermoplastic back cover for easy visual inspection of wiring
  • 18 to 10 AWG terminal accommodation
  • Zinc plated steel assembly screws and solid brass blade and contacts
  • Thermoplastic back cover, nylon wire module, nylon cord clamp, nylon clamp insert and brass terminal screws
  • Features hinged design for fast, easy, installation and assembly

Specifications

Amperage Rating:20 A
Color:Yellow
Cord Diameter:0.25 to 0.655 in
Country of Origin:MX
Dimensions:1.81 in H x 1.41 in W x 1.22 in D
Grade:Industrial
Material:Nylon
NEMA Rating:NEMA 6-20P
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Voltage Rating:250 VAC
