55050 LEV

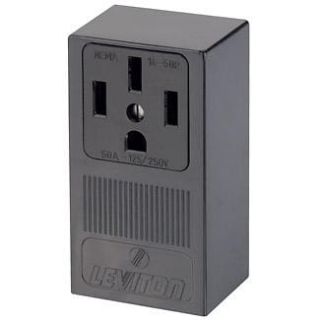

Picture of 55050 LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
55050
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Leviton®

Type

Grounding

Alternate Supplier #

Grainger - 25MG72

Description

Built of durable thermoplastic, Leviton® power receptacles - come equipped with heavy gauge, double wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.
Leviton® Straight Blade Receptacle, Grounding, 125/250 VAC, 50 A, 7-1/2 hp, 3 Pole, 4 Wires, NEMA 14-50R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Black, 4.82 in H x 2.68 in W x 24 in D Dimensions

Standards

NEMA WD6 | ANSI C73 | NOM 057 | CSA C22.2 No. 42 File No. 152105 | UL 498 File No. E13399/E13393 | UL94 V-2 Flammability Rating

Features

  • Heavy gauge, double wipe copper alloy contacts
  • Easy-to-wire terminals accept up to no 4 AWG conductors
  • Terminals marked for easy identification and fast wiring
  • All mounting hardware included
  • Flush mount devices fit single or 2-gang outlet boxes
  • Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable

Specifications

Amperage Rating:50 A
Color:Black
Country of Origin:MX
Dimensions:4.82 in H x 2.68 in W x 24 in D
Grade:Commercial
Horsepower:3 hp
Material:Thermoplastic
NEMA Rating:NEMA 14-50R
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:125/250 VAC
