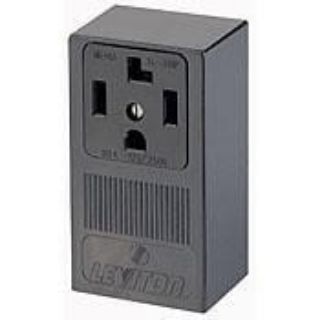

Picture of 55054 LEV
Actual Product May Vary From Image

55054 LEV

Leviton® 55054 Grounding Straight Blade Receptacle, 125/250 VAC, 30 A, 3 Poles, 4 Wires, Black
Manufacturer: Leviton Manufacturing
Manufacturer part number: 55054
Availability: Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Leviton®

Type

Grounding

Description

Built of durable thermoplastic, Leviton® power receptacles - come equipped with heavy gauge, double wire copper alloy contacts. To ensure correct and speedy wiring, terminals have ID markings.
Leviton® Straight Blade Receptacle, Grounding, 125/250 VAC, 30 A, 2 hp, 3 Pole, 4 Wires, NEMA 14-30R NEMA Rating, Commercial Grade, -40 to 60 deg C, Side Wire Terminal, Thermoplastic, Black, 4.82 in H x 2.68 in W x 24 in D Dimensions

Standards

ANSI C73 | UL 498 File No. E13399 | File No. E13393 | CSA C22.2 No. 42 File No. 152105 | NOM 057 Certified | UL 94 V-2 Flammability Rating | NEMA WD-6

Features

  • Heavy gauge, double wipe copper alloy contacts
  • Easy-to-wire terminals accept up to no 4 AWG conductors
  • Terminals marked for easy identification and fast wiring
  • All mounting hardware included
  • Flush mount devices fit single or 2-gang outlet boxes
  • Surface mount devices are commercial grade and have concentric knockouts for 3/4 and 1 in conduit and adjustable cord clamp for back and bottom entrance of cable

Specifications

Amperage Rating:30 A
Color:Black
Country of Origin:MX
Dimensions:4.82 in H x 2.68 in W x 24 in D
Grade:Commercial
Horsepower:2 hp
Material:Thermoplastic
NEMA Rating:NEMA 14-30R
Number of Poles:3
Number of Wires:4
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:125/250 VAC
