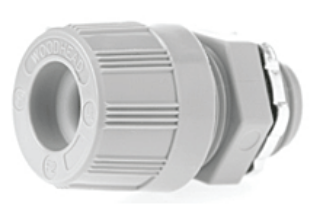

Actual Product May Vary From Image

5522W WOO

Name: 5522W WOO
Brand: Molex/Woodhead
SKU: 5522W WOO
Price: 12.34 USD
Availability: OutOfStock

Woodhead® MAX-LOC® 5522W 130098 Strain Relief Cord Sealing Grip, 1/2 in Trade, 3/16 to 1/4 in Cable Openings, Nylon

Manufacturer: Molex/Woodhead

Manufacturer part number: 5522W

Availability: Expected Leadtime 7 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$12.34

Qty:

Product Details

Brand Name

Woodhead®

Type

Strain Relief

Description

Plugs, connectors, and boxes/enclosures in harsh areas demand strain relief for optimal performance. Woodhead grips reduce arc bend, assist in the load support of a hanging box, and help to prevent pullout. Woodhead offers a solution for both standard and wet-location environments to ensure maximum life. Deluxe cord grips feature an aluminum body integrated with a stainless steel mesh. Non-metallic Max-Loc® grips are available with an O-ring and stainless steel or non-metallic mesh and are suitable for wet locations. Stainless steel Max-Loc fittings and wire mesh assemblies offer the greatest impact and chemical resistance to be applied in food processing, dairy, aerospace and clean room environments.

Woodhead® MAX-LOC® Cord Sealing Grip, Strain Relief, Series: 130098, 1/2 in Trade, Cable Openings: 3/16 to 1/4 in, MNPT Straight Connection, Nylon, Orange

Application

Electricians, HVAC Contractors, Irrigation Equipment and Panel Builders Applications

Standards

CSA LR32159 | UL E76954

Features

Rugged construction suitable for boxes, cabinets, pushbutton and general use enclosures
Nylon body is resistant to impact and corrosion
Rubber grommet provides a liquidtight seal and reduces cord pullout
Grommets are color-coded for easy identification
Rubber grommet is best material to resist chemicals and handles a wide temperature range
Nylon gray cord grip body, compression nut and white washer, neoprene o-ring, rubber grommet, zinc plated steel nut
NEMA 6P when used with correct NPT-sized o-ring
Two compression nut form size
Liquid-tight cord seal
One hole fitting
Without mesh
For use with 130099-0143 1/2 in NPT MAX-LOC® locknut 130180-0314 MAX-LOC® 1/2 in NPT o-ring

Specifications

Cable Openings:	3/16 to 1/4 in
Color:	Orange
Connection Type:	MNPT Straight
Country of Origin:	US
Material:	Nylon
Series:	130098
Trade Size:	1/2 in
