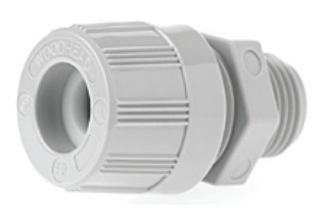

Picture of 5540 WOO
Actual Product May Vary From Image

5540 WOO

Woodhead® MAX-LOC® 5540 130098 Straight Strain Relief Cord Sealing Grip, 3/4 in Trade, 9/16 to 11/16 in Cable Openings, Nylon
Manufacturer: Molex/Woodhead
Manufacturer part number: 5540
Availability: Expected Leadtime 7 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$10.99

Product Details

Brand Name

Woodhead®

Type

Straight Strain Relief

Description

Plugs, connectors and boxes/enclosures in harsh areas demand strain relief for optimal performance. Woodhead® grips reduce cord arc bend, assist in the load support of a hanging box and help to prevent cord pullout. Woodhead® offers a solution for both standard and wet-location environments to ensure maximum life. Deluxe cord grips feature an aluminum body integrated with a stainless steel mesh. Non-metallic MAX-LOC® grips are available with an O-ring and stainless steel or non-metallic mesh and are suitable for wet locations. Dust-tight grips are very popular for general use enclosure or box installations. Wiring device cord grips can be used on cord-clamp style plugs and connectors and threaded cord grips can be used with Watertite® or other threaded style connections.
Woodhead® MAX-LOC® Cord Sealing Grip, Straight Strain Relief, Series: 130098, 3/4 in Trade, Cable Openings: 9/16 to 11/16 in, MNPT Connection, Nylon, Green, 1.5 in Dia x 1.7 in L Dimensions

Application

Electricians, HVAC Contractors, Irrigation Equipment and Panel Builder Applications

Standards

UL E76954 | CSA LR32159

Features

  • Rugged construction suitable for boxes, cabinets, pushbutton and general use enclosures
  • Nylon body is resistant to impact and corrosion
  • Rubber grommet provides a liquidtight seal and reduces cord pullout
  • Grommets are color coded for easy identification
  • Rubber grommet is best material to resist chemicals and handles a wide temperature range
  • Available stainless steel mesh yields high strength, corrosion resistance and slight conductivity
  • Available non-metallic mesh yields moderate strength, corrosion resistance, great flexibility and no conductivity
  • Gray cord grip body and compression nut, nylon washer
  • Rubber grommet
  • Neoprene O-ring
  • Zinc plated steel nut
  • Half double weave, half single weave mesh
  • Liquidtight cord seal
  • One hole fitting
  • NEMA 3R enclosure
  • Without o-ring and locknut

Specifications

Cable Openings:9/16 to 11/16 in
Color:Green
Connection Type:MNPT
Country of Origin:US
Dimensions:1.5 in Dia x 1.7 in L
Material:Nylon
Series:130098
Trade Size:3/4 in
