Actual Product May Vary From Image

55V1130E BRN

Name: 55V1130E BRN
Brand: Regal Rexnord
SKU: 55V1130E BRN
Price: 692.79 USD
Availability: OutOfStock

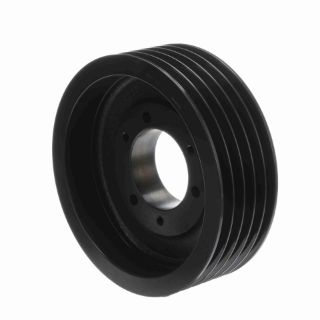

Browning® 3063443 Type A Arm Multiple Sheave, 7/8 to 3-1/2 in QD® Bore, 11.3 in OD, 5 Grooves, 11.2 in Dia Pitch, 3-3/4 in W Face

Manufacturer: Regal Rexnord

Manufacturer part number: 3063443

Availability: Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$692.79

Qty:

Product Details

Brand Name

Browning®

Type

Type A Arm

Description

Browning® offers an extensive multi-groove sheave offering. This includes Browning® Split-Taper® and QD® bushing designs. This means maximum economy and versatility for your application. Truly the right drive every time our exclusive B5V® sheaves have a patented design that offers 5V horsepower in the economy of a B section sheave. B5V® sheaves serve 90% of all applications from 10 to 150 hp. This can reduce cost up to 40% over traditional designs.

Browning® Multiple Sheave, Type A Arm, QD® Bore, 7/8 to 3-1/2 in Bore, 11.3 in OD, 11.2 in Pitch Diameter, 5 Grooves, 3-3/4 in Face Width, E Bushing, For Use With: GripBelt® 5V Cross Section V-Belt, Cast Iron

Application

Aggregate, Cement, Agriculture, Coal Power Generation, Forestry, HVAC, Minerals, Mining, Pulp, Paper and Unit Handling Industries

Standards

ABMA/AGMA/AIST/AWEA/CEMA/GEAPS/MPTA/NSSGA/PTDA Standards

Features

Close grain cast iron allows Browning® to machine our sheaves to the closest tolerances possible

Specifications

Bore Diameter:	7/8 to 3-1/2 in
Bore Type:	QD®
Bushing Type:	E
Country of Origin:	MX
Face Width:	3-3/4 in
Material:	Cast Iron
Number of Grooves:	5
Outside Diameter:	11.3 in
Pitch Diameter:	11.2 in
Suitable For Use With:	GripBelt® 5V Cross Section V-Belt
