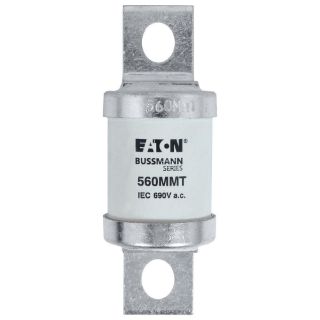

Actual Product May Vary From Image

560MMT BSF

Name: 560MMT BSF
Brand: Bussmann
SKU: 560MMT BSF
Availability: OutOfStock

Bussmann 560MMT British Style Semi-Conductor Type MMT High Speed Fuse, 560 A, 600 VAC/450 VDC, 200 kA Interrupt

Manufacturer: Bussmann

Manufacturer part number: 560MMT

Availability: Expected Leadtime 33 days

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON
0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Bussmann

Type

British Style Semi-Conductor Type MMT

Description

Eaton's Bussmann British standard BS88 fuses can be used in multiple applications; industrial, utility, street lighting and domestic. Full range of rated current and voltage available as well as compatible fuse holders. They meet the BS88 part 1 and 2 and IEC 60269-1 and -2 standards.

Bussmann High Speed Fuse, British Style Semi-Conductor Type MMT, Indicating/Non-Indicating: Non-Indicating, 560 A, 600 VAC/450 VDC, 200 kA Interrupt, Blade Terminal, Stud Mount, 4.449 in L x 1.496 in W x 3.268 in H Body Size

Application

Aftermarket, Control Panels for Machines, Panel Builders, OEMs, Electrical Assemblies, Panels, Power Distribution and Control, DC Common Bus, DC Drives, Power Converters, Rectifiers and Reduced Voltage Starters Applications, Safety and Security Systems

Standards

CE Certified | IEC Certified | RoHS Compliant | UL Listed | UL Recognized

Features

64 W power loss

Specifications

Amperage Rating:	560 A
Body Size:	4.449 in L x 1.496 in W x 3.268 in H
Indicating/Non-Indicating:	Non-Indicating
Interrupt Rating:	200 kA
Mounting Type:	Stud
Terminal Type:	Blade
Voltage Rating:	600 VAC/450 VDC
