Actual Product May Vary From Image

560XL TPO

Name: 560XL TPO
Brand: Greenlee
SKU: 560XL TPO
Availability: OutOfStock

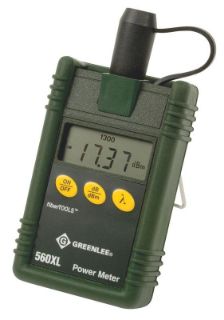

METER, FIBRE OPTIC POWER (560XL)

Manufacturer: Greenlee

Manufacturer part number: 560XL

Availability: Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Greenlee

Type

Fiber Optic

Description

Easy to use - three buttonscontrol all functions. Loss measurements in (dB). power measurements in (dBm). 0.01 dB measurement resolution. Multi-wavelength storage -store and recall reference power levels for faster, more efficient measurements. Snap-On connector interface adapts to FC, SC and ST connectors. Long battery life. User selectable auto shut-off. Rugged and splash-proof. Economically priced.

Standards

CE - EN61010
EN50081-1: 1992
EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4

Specifications

Accuracy:	Plus Or Minus 0.25 DB
Calibration Wavelengths:	850 nm, 1300 nm, 1310 nm And 1550 nm
CE:	<ul><li>EN61010</li><li> EN50081-1: 1992</li><li> EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4</li></ul>
Connector interface:	FC, SC Or ST SOC Adapter
Country of Origin:	US
Dimensions:	7.200 CM X 14.200 CM X 3.500 CM (2.800 IN X 5.600 IN X 1.400 IN)
Humidity:	0 To 95% Non-Condensing
Linearity:	Plus Or Minus 0.5 dB For +3 dBm To -3 dBm, Plus Or Minus 0.05 dB For -3 dBm To -50 dBm, Plus Or Minus 0.5 dB For -50 dBm To -60 dBm
Power Range:	+3 dBm To -60 dBm
Power Requirement:	Two AA Size 1.5 V Batteries (Approximately 100 Hours Continuous Operation)
Resolution:	0.01 DB

Resources

Brochure Installation Spec Sheet Warranty
