5611-2W LEV

Name: 5611-2W LEV
Brand: Leviton Manufacturing
SKU: 5611-2W LEV
Availability: OutOfStock

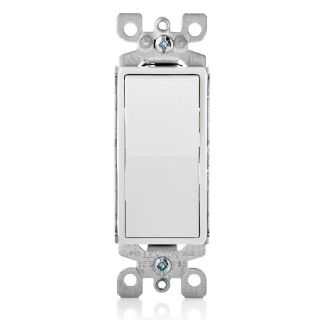

Actual Product May Vary From Image

Product Details

Manufacturer:

Leviton Manufacturing

Manufacturer part number:

5611-2W

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Leviton®

Type

Grounding Lighted Handle Illuminated

Alternate Supplier #

Grainger - 5Z803

Description

Featuring a designer look and feel that qualify them as modern classics, Decora® rocker switches add so much at a modest cost that no fine home should be without them. Their sleek simplicity and smooth, quiet operation stem from quality materials fitted to tight tolerances and finished with great care, ensuring years of trouble free service. Easy to wire, they work with tungsten, fluorescent and resistive loads. Their sturdy construction and dependable performance are everything youd expect from the preeminent switch maker.

Leviton®, 5611-2W, AC Quiet Switch, Grounding Lighted Handle Illuminated, 120/277 VAC, 15 A, 1/2 hp, 2 hp Power, 15 A at 120/277 VAC Contact, 1 Pole, Quiet Action, Rocker Actuator, Surface Mounting, Quick-Wire®/Side Wire Terminal, Thermoplastic, White, Environmental Conditions: -40 to 120 deg C Operating Temperature, 4.06 in H x 1.3 in W Dimensions

Application

Residential Applications

Standards

UL File No. E7458 | CSA File No. LR3413 | NOM 057 | UL94 V-2 Flammability Rating

Features

Illuminated switch rocker illuminates when load is OFF
Switch border shields against dust and fits in wallplate to prevent rocker binding
Side wiring terminals accept both solid and stranded wire for easy installation
Full rated current capacity with tungsten, fluorescent or resistive loads
Motor capacity is 80% of switch rating
Conforms to NEMA and ANSI standards
Pilot light switch rocker visible when load is ON, even in bright light
Illuminated switch does not require a neutral
Pilot light switch requires a neutral
1/2 hp at 120 VAC, 2 hp at 277 VAC power rating
Switch frame shields against dust and fits in wallplate to prevent rocker binding
Illuminated when load is off
Terminal screws accept up to #12 AWG copper or copper clad wire
Conform to all NEMA standard specifications
Quickwire® push-in terminals accept #14 AWG solid copper wire only

Specifications

Action:	Quiet
Actuator:	Rocker
Amperage Rating:	15 A
Color:	White
Contact Rating:	15 A at 120/277 VAC
Country of Origin:	US
Dimensions:	4.06 in H x 1.3 in W
Environmental Conditions:	-40 to 120 deg C Operating Temperature
Material:	Thermoplastic
Mounting:	Surface
Number of Poles:	1
Power Rating:	1/2 hp, 2 hp
Terminal Type:	Quick-Wire®/Side Wire
Voltage Rating:	120/277 VAC
