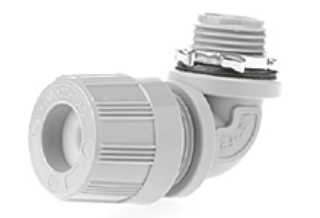

Picture of 5623W WOO
Actual Product May Vary From Image

5623W WOO

Woodhead® 5623W 130098 Strain Relief Cord Sealing Grip, 3/4 in Trade, 1/4 to 3/8 in Cable Openings, Nylon
Manufacturer: Molex/Woodhead
Manufacturer part number: 5623W
Availability: Expected Leadtime 12 days
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$25.75

Product Details

Brand Name

Woodhead®

Type

Strain Relief

Description

Plugs, connectors, and boxes/enclosures in harsh areas demand strain relief for optimal performance. Woodhead grips reduce arc bend, assist in the load support of a hanging box, and help to prevent pullout. Woodhead offers a solution for both standard and wet-location environments to ensure maximum life. Deluxe cord grips feature an aluminum body integrated with a stainless steel mesh. Non-metallic Max-Loc® grips are available with an O-ring and stainless steel or non-metallic mesh and are suitable for wet locations. Stainless steel Max-Loc fittings and wire mesh assemblies offer the greatest impact and chemical resistance to be applied in food processing, dairy, aerospace and clean room environments.
Woodhead® Cord Sealing Grip, Strain Relief, Series: 130098, 3/4 in Trade, Cable Openings: 1/4 to 3/8 in, 90 deg MNPT Connection, Nylon, Gray

Application

Electricians, HVAC Contractors, Irrigation Equipment and Panel Builder Applications

Standards

CSA LR32159 | UL E76954

Features

  • Rugged construction suitable for boxes, cabinets, pushbutton and general use enclosures
  • Nylon body is resistant to impact and corrosion
  • Rubber grommet provides a liquid-tight seal and reduces cord pull-out
  • Grommets are color-coded for easy identification
  • Rubber grommet is best material to resist chemicals and handles a wide temperature range
  • Nylon gray cord grip body compression nut and white washer, rubber grommet, neoprene o-ring, zinc-plated steel nut
  • NEMA 6P when used with correct NPT-sized o-ring
  • 3 compression nut form size
  • Liquid-tight cord seal
  • 1 hole
  • Without mesh
  • Use with 130099-0144 MAX-LOC® 3/4 in NPT locknut

Includes

O-Ring/Locknut

Specifications

Cable Openings:1/4 to 3/8 in
Color:Gray
Connection Type:90 deg MNPT
Country of Origin:US
Material:Nylon
Series:130098
Trade Size:3/4 in
