Home / 5658-SS LEV

5658-SS LEV

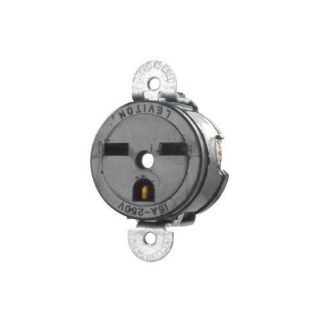

Picture of 5658-SS LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton Manufacturing
Manufacturer part number:
5658-SS
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$13.39 / EA

Description

Brand Name

Leviton®

Type

Heavy Duty Grounding Short Strap Single

Description

Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant and more, these commercial grade devices are the electrical contractors choice for use in hotels, schools, hospitals and commercial office buildings.
Leviton®, 5658-SS, Straight Blade Receptacle, Heavy Duty Grounding Short Strap Single, 250 VAC, 15 A, 1-1/2 hp, 2 Pole, 3 Wires, NEMA 6-15R NEMA Rating, Commercial Grade, NEMA WD-1/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Nylon, Black, 2.31 in H x 1.2 in D Dimensions

Standards

NEMA WD-1/WD-6 | ANSI C-73 | NOM 057 | CSA C22.2 No. 42 File No. 152105 | UL File No. E13399 | UL 498 File No. E13399 | UL94 V-2 Flammability Rating

Features

  • Manufactured to withstand the demands of commercial and institutional applications
  • Heavy duty brass power contacts for maximum conductivity and plug retention
  • Shallow design for maximum wiring room in box

Specifications

Amperage Rating:15 A
Color:Black
Country of Origin:MX
Dimensions:2.31 in H x 1.2 in D
Enclosure:NEMA WD-1/WD-6
Grade:Commercial
Horsepower:1-1/2 hp
Material:Nylon
NEMA Rating:NEMA 6-15R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:250 VAC
