5662DWCR WOO

Name: 5662DWCR WOO
Brand: Molex/Woodhead
SKU: 5662DWCR WOO
Availability: OutOfStock

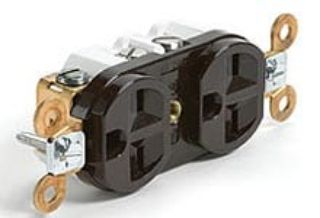

Actual Product May Vary From Image

Product Details

Manufacturer:

Molex/Woodhead

Manufacturer part number:

5662DWCR

CBT Inventory

Vendor Inventory

Availability:

Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Woodhead®

Type

Duplex Heavy Duty Female

Description

Woodhead® Straight Blade Receptacle, Duplex Heavy Duty Female, Series: 130148, 250 VAC, 15 A, 2 Pole, 3 Wires, NEMA L6-15 NEMA Rating, Industrial Grade, -40 to 75 deg C, Screw Terminal, Nylon, Yellow

Standards

UL File No. E46237 | CSA File No. LR6837

Features

Rugged nylon bodies within the Safeway™ offering provide exceptional durability and performance
Color coded 1/4 in terminal screws preset in open position, ready to wire
Wire screw terminals are tri-drive to be used with straight blade, Phillips and square drive screw drivers
Floating blade construction provides self-alignment and a better mechanical and electrical connection minimizing wear and heat generation
Transparent wiring guide to verify all wire strands are in place before securing wire
Captive, tri-drive head, stainless steel, speed screw provides easy assembly and long life
2-piece cord clamp strain relief includes tri-drive screws to firmly secure the cord
Corrosion resistant

Specifications

Amperage Rating:	15 A
Color:	Yellow
Country of Origin:	US
Grade:	Industrial
Material:	Nylon
NEMA Rating:	NEMA L6-15
Number of Poles:	2
Number of Wires:	3
Series:	130148
Temperature Rating:	-40 to 75 deg C
Terminal Type:	Screw
Voltage Rating:	250 VAC
