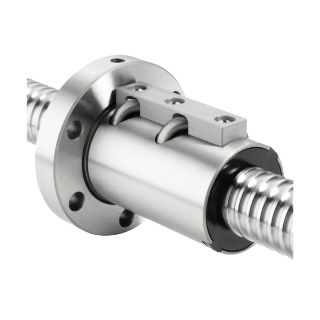

Picture of 5700974 THO
Actual Product May Vary From Image

5700974 THO

Thomson® 5700974 Precision Plus Preloaded Ball Screw and Nut Assembly, 3/4 in Dia Screw, 0.2 in, Right Hand Thread, 42 in L Screw
Manufacturer: Thomson Industries
Manufacturer part number: 5700974
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson®

Type

Preloaded

Description

Thomson® Precision Plus Ground Ball Screw Assemblies provide the positioning accuracy and repeatability required for the most stringent positioning applications. They are designed and manufactured to provide 8 times the lead accuracy of conventional ball screws, and provide consistent, zero-backlash, preload for high repeatability. All ball nuts feature an integral flange for optimal precision and mounting ease, and specially designed seals/wipers that provide superior lubricant retention while keeping out harmful contaminants.
Thomson® Ball Screw and Nut Assembly, Preloaded, Series: Precision Plus, Right Hand Thread, 0.2 in Thread Lead, 3/4 in Screw Diameter, 42 in Screw Length, 3 in Nut Length, 1473 lb Dynamic/9916 lb Static Screw Load, Steel

Features

  • Screw must be machined to fit end supports
  • Long-lasting preload for minimal backlash and consistent stiffness
  • Screw must be machined to fit into end support bearings screws can be ordered with ends machined, assembled with support bearings

Includes

Round Ball Nut with Integral Flange and Wiper

Specifications

Country of Origin:US
Material:Steel
Nut Length:3 in
Screw Diameter:3/4 in
Screw Length:42 in
Screw Load Capacity:1473 lb Dynamic/9916 lb Static
Series:Precision Plus
Thread Direction:Right Hand
Thread Lead:0.2 in
