5701990 THO

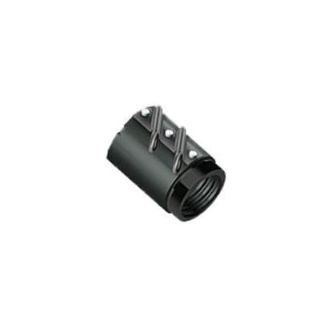

Thomson® 5701990 Type C Non-Preloaded Round Ball Nut, 1-1/2 in Dia Screw, 1/4 in, 2 Circuits, 2.088 in OD
Manufacturer: Thomson Industries
Manufacturer part number: 5701990
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson®

Type

Type C Non-Preloaded Round

Description

Thomson® Ball Nut, Type C Non-Preloaded Round, 1-1/2 in Screw Diameter, 2.088 in OD, 2 Circuits, 2.875 in Nut Length, 1.967-18 UNS Thread, Left Hand Thread, 1/4 in Thread Lead, 4198 lb Dynamic/44030 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel, Black Oxide

Application

Industrial and Transport Grade Applications

Standards

RoHS Compliant

Features

  • 300 deg F operating temperature
  • Nut only, screw sold separately

Specifications

Country of Origin:US
Finish:Black Oxide
Load Capacity:4198 lb Dynamic/44030 lb Static
Material:Steel
Number of Circuits:2
Nut Length:2.875 in
Outside Diameter:2.088 in
Screw Diameter:1-1/2 in
Suitable For Use With:Precision Rolled Ball Screw
Thread Direction:Left Hand
Thread Lead:1/4 in
Thread Size:1.967-18 UNS
