5702654 THO

Thomson® 5702654 Brush Wiper Kit, 1-1/2 in Dia Screw, 1/4 in
Manufacturer: Thomson Industries
Manufacturer part number: 5702654
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson®

Type

Brush

Description

Wipers can increase the life and long-term performance of ball bearing screws by preventing most dirt and other foreign matter from entering the ball nut. Wipers are attached via two methods: Type A attaches directly to the ball nut body and flange; and Type B installs into the ends of the ball nut with easy-to-install snap rings kits.
Thomson® Wiper Kit, Brush, 1-1/2 in Screw Diameter, 1/4 in Thread Lead, For Use With: Type C Precision Rolled Ball Screw

Features

  • Wipers can increase the life and long-term performance of ball bearing screws by preventing most dirt and other foreign matter from entering the ball nut
  • End cap attached to the ball nut hold one wiper in position
  • If the application does not use a flange, discard the flange end cap and epoxy the wiper to the end of the ball nut

Includes

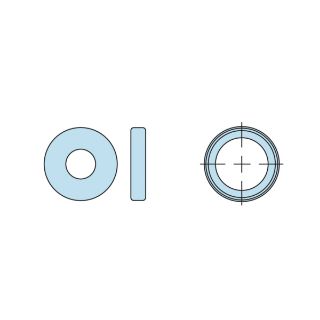

(2) 2.158 in OD x 0.137 in W and 1.87 in OD x 0.105 in W Wipers and (1) Retainer

Specifications

Country of Origin:US
Screw Diameter:1-1/2 in
Suitable For Use With:Type C Precision Rolled Ball Screw
Thread Lead:1/4 in
