5703258 THO

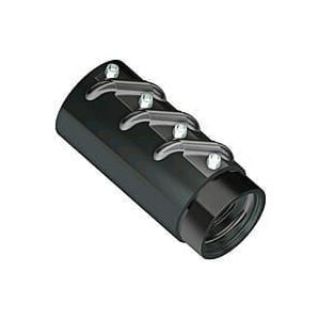

Thomson® 5703258 Type D Non-Preloaded Round Ball Nut, 4 in Dia Screw, 1 in, 3 Circuits, 5-7/8 in OD
Manufacturer: Thomson Industries
Manufacturer part number: 5703258
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson®

Type

Type D Non-Preloaded Round

Description

Thomson® Ball Nut, Type D Non-Preloaded Round, 4 in Screw Diameter, 5-7/8 in OD, 3 Circuits, 12.593 in Nut Length, 5.497-12 UNS Thread, Right Hand Thread, 1 in Thread Lead, 85758 lb Dynamic/476970 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel, Black Oxide

Application

Industrial and Transport Grade Applications

Standards

RoHS Compliant

Features

  • 300 deg F operating temperature
  • Nut only, screw sold separately

Specifications

Country of Origin:US
Finish:Black Oxide
Load Capacity:85758 lb Dynamic/476970 lb Static
Material:Steel
Number of Circuits:3
Nut Length:12.593 in
Outside Diameter:5-7/8 in
Screw Diameter:4 in
Suitable For Use With:Precision Rolled Ball Screw
Thread Direction:Right Hand
Thread Lead:1 in
Thread Size:5.497-12 UNS
