5704000 THO

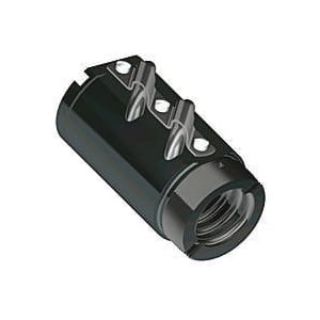

Thomson® 5704000 Type C Non-Preloaded Round Ball Nut, 2-1/4 in Dia Screw, 1/2 in, 2 Circuits, 3-3/8 in OD
Manufacturer: Thomson Industries
Manufacturer part number: 5704000
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson®

Type

Type C Non-Preloaded Round

Description

Thomson® Ball Nut, Type C Non-Preloaded Round, 2-1/4 in Screw Diameter, 3-3/8 in OD, 2 Circuits, 6.688 in Nut Length, 3.137-12 UNS Thread, Left Hand Thread, 1/2 in Thread Lead, 21306 lb Dynamic/161150 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel, Black Oxide

Application

Industrial and Transport Grade Applications

Standards

RoHS Compliant

Features

  • 300 deg F operating temperature
  • Nut only, screw sold separately

Specifications

Country of Origin:US
Finish:Black Oxide
Load Capacity:21306 lb Dynamic/161150 lb Static
Material:Steel
Number of Circuits:2
Nut Length:6.688 in
Outside Diameter:3-3/8 in
Screw Diameter:2-1/4 in
Suitable For Use With:Precision Rolled Ball Screw
Thread Direction:Left Hand
Thread Lead:1/2 in
Thread Size:3.137-12 UNS
