5704168 THO

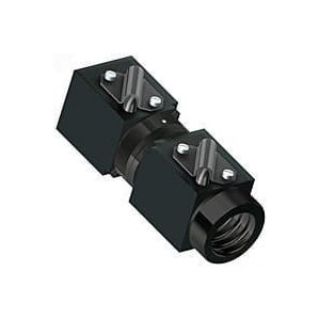

Thomson® 5704168 Type G Double Preloaded Square Ball Nut, 1 in Dia Screw, 1/4 in, 1 Circuits
Manufacturer: Thomson Industries
Manufacturer part number: 5704168
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson®

Type

Type G Double Preloaded Square

Description

Preloaded ball nuts should be considered to eliminate backlash and increase system stiffness in applications where multi-directional positional accuracy and repeatability are required. Preloaded ball nuts consist of two non-preloaded ball nuts (round or square) joined by an adjustable preload package with springs. This design allows ease of setup and adjust of preload based on application requirements.
Thomson® Ball Nut, Type G Double Preloaded Square, 1 in Screw Diameter, 1 Circuits, 4.847 in Nut Length, 1-9/16-18 UNEF Thread, Left Hand Thread, 1/4 in Thread Lead, 1612 lb Dynamic/13913 lb Static Load, For Use With: Precision Rolled Ball Screw, Steel

Standards

RoHS Compliant

Features

  • 300 deg F operating temperature
  • Nut only, screw sold separately
  • 1-1/2 in W nut

Specifications

Country of Origin:US
Load Capacity:1612 lb Dynamic/13913 lb Static
Material:Steel
Number of Circuits:1
Nut Length:4.847 in
Screw Diameter:1 in
Suitable For Use With:Precision Rolled Ball Screw
Thread Direction:Left Hand
Thread Lead:1/4 in
Thread Size:1-9/16-18 UNEF
