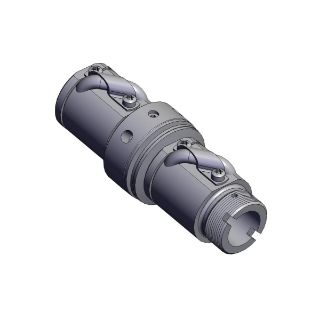

Actual Product May Vary From Image

5704271 THO

Name: 5704271 THO
Brand: Thomson Industries
SKU: 5704271 THO
Availability: OutOfStock

Thomson® 5704271 SAG Legacy Type G Preloaded Round Ball Nut, 1-1/2 in Dia Screw, 1/4 in, 2 x 2 Circuits, 2.088 in OD

Manufacturer: Thomson Industries

Manufacturer part number: 5704271

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

Price on Request

Qty:

Product Details

Brand Name

Thomson®

Type

Type G Preloaded Round

Description

Preloaded ball nuts should be considered to eliminate backlash and increase system stiffness in applications where multi-directional positional accuracy and repeatability are required. Preloaded ball nuts consist of two non-preloaded ball nuts (round or square) joined by an adjustable preload package with springs. This design allows ease of setup and adjust of preload based on application requirements.

Thomson® Ball Nut, Type G Preloaded Round, Series: SAG Legacy, 1-1/2 in Screw Diameter, 2.088 in OD, 2 x 2 Circuits, 6-3/8 in Nut Length, 1-9/16-18 UNEF Thread, Right Hand Thread, 1/4 in Thread Lead, 4198 lb Dynamic/44030 lb Static Load, For Use With: SAG Legacy Precision Rolled Ball Screw, Steel

Standards

RoHS Compliant

Features

300 deg F operating temperature
Nut only, screw sold separately

Specifications

Country of Origin:	US
Load Capacity:	4198 lb Dynamic/44030 lb Static
Material:	Steel
Number of Circuits:	2 x 2
Nut Length:	6-3/8 in
Outside Diameter:	2.088 in
Screw Diameter:	1-1/2 in
Series:	SAG Legacy
Suitable For Use With:	SAG Legacy Precision Rolled Ball Screw
Thread Direction:	Right Hand
Thread Lead:	1/4 in
Thread Size:	1-9/16-18 UNEF
