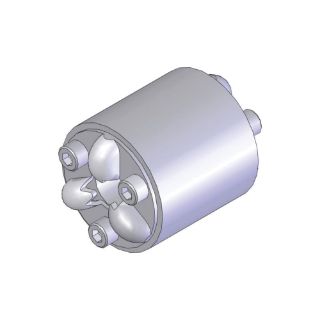

Thomson® 5706900 Spline Outer Race, 3/8 in OD Spline, 3, 1.589 in L
Manufacturer: Thomson Industries
Manufacturer part number: 5706900
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson®

Description

A Thomson® precision ball spline consists of mating inner and outer races containing concave axial races and a complement of bearing balls. The balls provide the only physical contact between the inner and outer races. Unlimited rolling travel is achieved by diverting the path of the balls at the extremes of the outer race into the end cap return circuit. This provides a closed loop through which the balls recirculate when the races are displaced axially relative to each other. The bearing balls resist radial displacement resulting from torque loads.
Thomson® Spline Outer Race, 3/8 in OD Spline, 1.589 in Length, 0.2 in Root Diameter, 3 Active Circuits, 0.156 in Diameter Nominal Ball, 54 Balls per Outer Race, 200 in-lb Dynamic/626 in-lb Static Load, Steel

Application

For precision rolled ball splines

Features

  • Outer race only, no inner race shaft
  • Offers high speed, anti-friction linear motion under high torsional loads
  • Lash, 0.005 in maximum standard play perpendicular to rotational axis
  • Efficiency, coefficient of friction 0.007 maximum
  • 300 deg F operating temperature

Specifications

Active Circuits:3
Balls per Outer Race:54
Country of Origin:US
Length:1.589 in
Load Capacity:200 in-lb Dynamic/626 in-lb Static
Material:Steel
Nominal Ball Diameter:0.156 in
Root Diameter:0.2 in
Spline Outside Diameter:3/8 in
