5707540 THO

Name: 5707540 THO
Brand: Thomson Industries
SKU: 5707540 THO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Thomson Industries

Manufacturer part number:

5707540

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Thomson BSA™

Type

Rolled Thread

Description

The ball screw drive is an assembly that converts rotary motion to linear motion. It consists of a ball screw and a ball nut packaged as an assembly with recirculating ball bearings. The interface between the ball screw and the nut is made by ball bearings which roll in matching ball forms. With rolling elements, the ball screw drive has a very low friction coefficient and is typically greater than 90% efficient. The forces transmitted are distributed over a large number of ball bearings, giving a low relative load per ball comparatively.

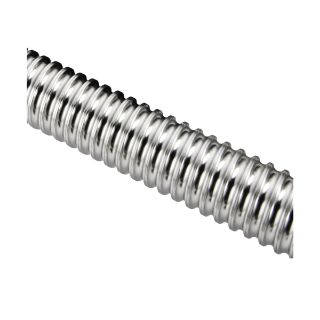

Thomson BSA™ Ball Screw, Rolled Thread, Series: Legacy, 0.631 in Screw Diameter, 0.2 in Thread Lead, Right Thread, 0.48 in Root Diameter, 72 in Length, 1 Starts, Steel, Manganese Phosphate

Application

Aircraft and Vehicle Construction, Injection Molding, Medical Devices, Pressing and Metal, Robotics and Factory Automation Fabrication Machines

Specifications

Country of Origin:	US
Finish:	Manganese Phosphate
Length:	72 in
Material:	Steel
Number of Starts:	1
Root Diameter:	0.48 in
Screw Diameter:	0.631 in
Series:	Legacy
Thread Direction:	Right
Thread Lead:	0.2 in
