5707547 THO

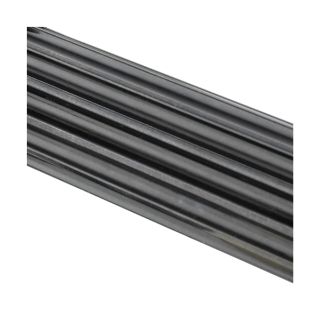

Thomson® 5707547 Spline Inner Race, 3/8 in OD, 3, 0.2 in Dia Root, 24 in L
Manufacturer: Thomson Industries
Manufacturer part number: 5707547
Availability: Ships in 1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Thomson®

Description

A Thomson® precision ball spline consists of mating inner and outer races containing concave axial races and a complement of bearing balls. The balls provide the only physical contact between the inner and outer races. Unlimited rolling travel is achieved by diverting the path of the balls at the extremes of the outer race into the end cap return circuit. This provides a closed loop through which the balls recirculate when the races are displaced axially relative to each other. The bearing balls resist radial displacement resulting from torque loads.
Thomson® Spline Inner Race, 3/8 in OD, 24 in Length, 0.2 in Root Diameter, 3 Active Circuits, Steel

Application

For precision rolled ball splines

Features

  • Inner race only, no outer race
  • Offers high speed, anti-friction linear motion under high torsional loads
  • Inner race must be machined to fit into end support bearings
  • Inner race can be ordered with ends machined, assembled with outer race and/or support bearings
  • Hardness, minimum of RC 56 in ball race
  • 300 deg F operating temperature

Specifications

Active Circuits:3
Country of Origin:US
Length:24 in
Material:Steel
Outside Diameter:3/8 in
Root Diameter:0.2 in
