Actual Product May Vary From Image

5/8 L PD CTL THO

Name: 5/8 L PD CTL THO
Brand: Thomson Industries
SKU: 5/8 L PD CTL THO
Price: 5.93 USD
Availability: OutOfStock

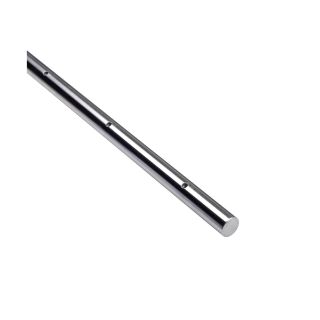

Thomson® 60 Case® Precision LinearRace® 5/8 L PD CTL Predrilled Shaft, L Class, 202 in L, Carbon Steel

Manufacturer: Thomson Industries

Manufacturer part number: 5/8 L PD CTL

Availability: Ships in 1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	0	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$5.93

Qty:

Product Details

Brand Name

Thomson®

Type

Predrilled

Description

Thomson® 60 Case® LinearRace® shafting is manufactured to the highest quality standards in an ISO 9000:2000 registered facility. Techniques are continuously upgraded with proprietary know-how gained from over 53 years of linear bearing design and manufacture. Using 60 Case® LinearRace® shafting with Thomson® Ball Bushing® bearings ensures optimal bearing performance and travel life.

Thomson® 60 Case® Precision LinearRace® Shaft, Predrilled, 202 in Length, 5/8 in Shaft Dia, Class: L, 0.624 in Dia Tolerance, 0.04 in Hardness Depth, Carbon Steel

Application

For Ball Bushing® size XA open, Super Ball Bushing®, Super Smart Ball Bushing® and adjustable bearings and pillow blocks

Features

Radial drilled and tapped holes ready for immediate use with standard hole spacing to match standard 60 Case® LinearRace® support rails
Diameter range between 1/2 and 4 in, special machining (SM) required over 2 in
Case hardness 60 HRC minimum
Roundness within 0.000080 in
Centerless ground for an industry leading catalogued surface finish of 8 Ra maximum
Straight within 0.001 in/ft cumulative when shipped from the factory
Predrilled shafting designed for open bearings
Hardened and ground, cut to length

Specifications

Class:	L
Country of Origin:	MX
Diameter Tolerance:	0.624 in
Hardness Depth:	0.04 in
Length:	202 in
Material:	Carbon Steel
Shaft Diameter:	5/8 in
