5801-W LEV

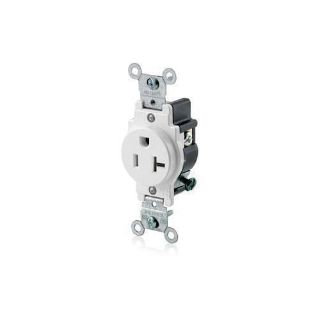

Picture of 5801-W LEV
Actual Product May Vary From Image

Product Details

Manufacturer:
Leviton
Manufacturer part number:
5801-W
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$6.48 / EA

Description

Brand Name

Leviton®

Type

1-Phase Heavy Duty Grounding Narrow Body Single Outlet

Alternate Supplier #

Grainger - 1PKC1

Description

Leviton® line of heavy duty specification grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper resistant, etc., these commercial grade devices are the electrical Contractors choice for use in hotels, schools, hospitals and commercial office buildings.
Leviton®, 5801-W, Straight Blade Receptacle, 1-Phase Heavy Duty Grounding Narrow Body Single Outlet, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial Grade, NEMA WD-2/WD-6 Enclosure, -40 to 60 deg C, Side Wire Terminal, Nylon, White, 4.06 in H x 1.38 in W x 1.06 in D Dimensions

Application

Commercial Applications

Standards

ANSI (C-73) | CSA C22.2 No. 42 File No. 152105 | NOM 057 | Federal Specification WC-596 | UL 498 File No. E13399 | UL94 V-2 Flammability Rating

Features

  • Manufactured to withstand the demands of commercial and institutional applications
  • Heavy duty brass power contacts for maximum conductivity and plug retention
  • Shallow design for maximum wiring room in box
  • 2000 VAC dielectric strength
  • Wallbox mounting
  • Grounding
  • 1-phase
  • 2000 VAC minimum dielectric strength
  • Zinc plated steel strap
  • 14 to 10 AWG wire terminal
  • Narrow body

Specifications

Amperage Rating:20 A
Color:White
Country of Origin:MX
Dimensions:4.06 in H x 1.38 in W x 1.06 in D
Enclosure:NEMA WD-2/WD-6
Grade:Commercial
Horsepower:1 hp
Material:Nylon
NEMA Rating:NEMA 5-20R
Number of Poles:2
Number of Wires:3
Temperature Rating:-40 to 60 deg C
Terminal Type:Side Wire
Voltage Rating:125 VAC
