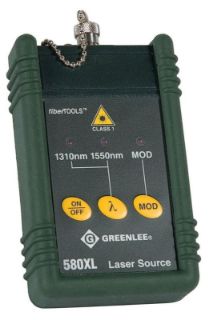

580XL-FC TPO

Name: 580XL-FC TPO
Brand: Greenlee
SKU: 580XL-FC TPO
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Greenlee

Manufacturer part number:

580XL-FC

CBT Inventory

Vendor Inventory

Availability:

Ships in 4-6 days.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Greenlee

Description

1310/1550nm wavelengths. Stable calibrated output. Easy to use. Continuous wave and modulated output.. Fixed connect interface FC, SC or ST. Long battery life - approx. 80 hours. User selectable auto shut-off. Rugged and splash-proof. Economically priced.

Standards

EN61010
EN50081-1: 1992
EN55011, Group 1, Class A EN50082-1: 1992 IEC 801-2, -3, -4, CDRH Laser Class 1

Specifications

CDRH Laser Class:	Class 1
Connector interface:	FC, SC Or ST
Country of Origin:	US
Dimensions:	2.800 IN (7.200 CM) X 5.600 IN (14.200 CM) X 1.400 IN (3.500 CM)
Humidity:	0 To 95% Non-Condensing
Max Spectral Width:	Lesser Than 5 NMTR
Measuring Range:	1280 NMTR To 1340 NMTR, 1520 NMTR To 1580 NMTR
Modulation Frequency:	270 KHZ, 1 KHZ And 2 KHZ
Power Supply:	Two AA Size 1.5 V Batteries
Stability:	Plus Or Minus 0.05 DB For 1 HR
StorageOperatingTemperature:	-35 To 70°C/-15 To 55°C
Typical Power Output 9125:	-8 DBM Minimum, -7 DBM Typical
Wavelength:	1310 NMTR Center, 1550 NMTR Center
Weight:	241.000 GM (8.500 OZ)

Resources

Brochure Installation Spec Sheet Warranty
