5ACLS-9R BSF

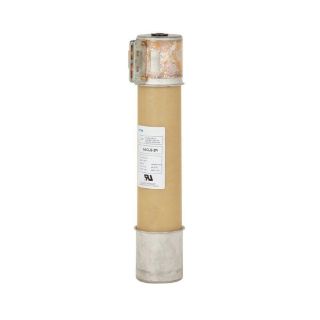

Picture of 5ACLS-9R BSF
Actual Product May Vary From Image

Product Details

Manufacturer:
Bussmann
Manufacturer part number:
5ACLS-9R
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
Availability:
Expected Leadtime 28 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,026.82 / EA

Description

Brand Name

Bussmann

Type

Medium Voltage

Description

Eaton CLS current limiting backup fuses are intended for indoor use. They are typically used in conjunction with high voltage motor starters to provide short circuit protection for individual motors.
Bussmann Current Limiting Fuse, Medium Voltage, Series: CLS, 200 A, 5.5 kV, 50 kA Interrupt, Class: R, 3 in Dia x 15.9 in L Body

Application

Motors and Controllers Applications

Standards

UL MSSS2 File No. E96676

Features

  • Current limiting R-Rated fuses are physically dimensioned for easy installation in existing hardware
  • Self contained in a non-venting package, PT fuses may be installed indoors or outdoors in an enclosure
  • Single barrel, 9R designation
  • 5.5 kV maximum/4.8 kV nominal voltage rating

Specifications

Amperage Rating:200 A
Body Size:3 in Dia x 15.9 in L
Class:R
Country of Origin:DO
Interrupt Rating:50 kA
Series:CLS
Voltage Rating:5.5 kV

Resources
